Performance

110W

16.3%

Max Power Output
Max efficiency

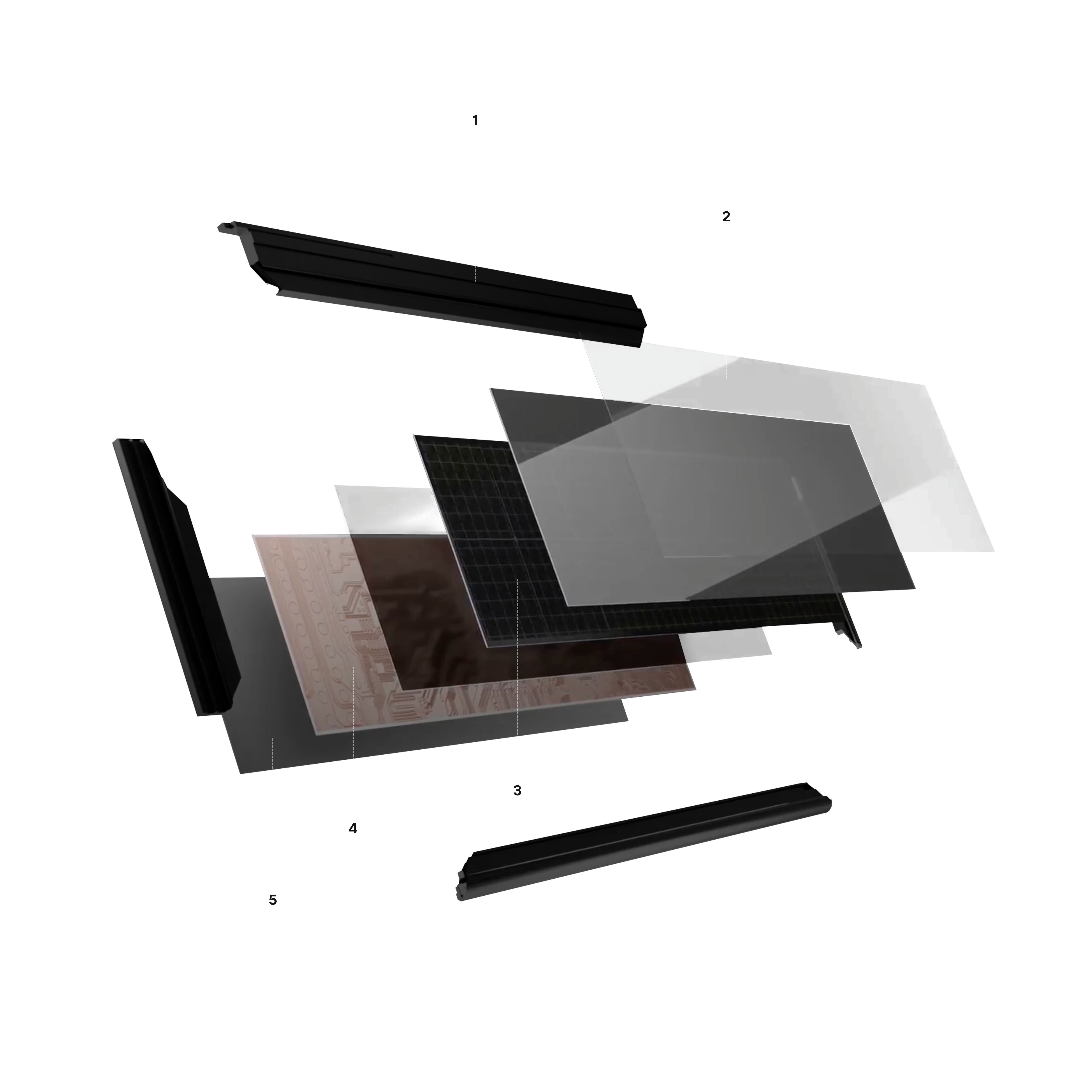

Module Diagram

Components

1. FRAME‍
Custom machined 6061 aluminium frame with a unique interlocking mechanism
2. DOUBLE GLASS LAYER
‍Low-iron tempered glass with anti-glare coating
3. SOLAR PV CELLS
High efficiency MWT-PERC Cell Technology
4. CONDUCTIVE LAYER‍
EVA and conductive copper-aluminium foil layer
5. ENCAPSULANT
Weather resistance and electrical insulation

Module Specifications

Peak Power Pmax
110W
Rated Current Imp
7.43A
Rated Voltage Vmp
14.8V
Short-circuit Current Isc
7.88A
Open-circuit voltage Voc
17.06
Module Efficiency
16.3%
Maximum Power Tolerance
±3%

Construction Materials

Backing
Black EVA (0.56+0.01mm thickness)
Junction Box
IP65
Output Cables
4mm² x 950mm
Connector
MC4 EVO2
Encapsulation
PVB(0.76+0.01mm thickness)
Front
3.2mm AR Coated Tempered Glass
Front
3.2mm Tempered Glass

Mechanical Characteristics

Cell Size
210mm  x 105mm
No. of Cells
24
Module Size
1907.5 x 443.1mm
Module Weight
13.8
Fixing Method
Screwed to batten. Interlock at nose (refer manual)
Fire Class Rating
UL790 Class A & Class C
Test Standards
IEC 61215-1, 1-1, 2:2021IEC 61730-1, 2:2023

Operating Conditions

Max. System Voltage SK II
1500V
Max. System Fuse Rating
30
Operating Temperature
-40~85°C
Max. Static Load, front
(e.g. snow) Pa
3600^
Max. Static Load, back
(e.g. wind) Pa
1600^

Temperature Coefficient

Temperature Coefficient
of Pmax
-0.39%/°C
Temperature Coefficient
of Voc
-0.3%/°C
Temperature Coefficient
of Isc
0.06%/°C
NMOT
43°C (±2°C)
